SD.KFZ. 10

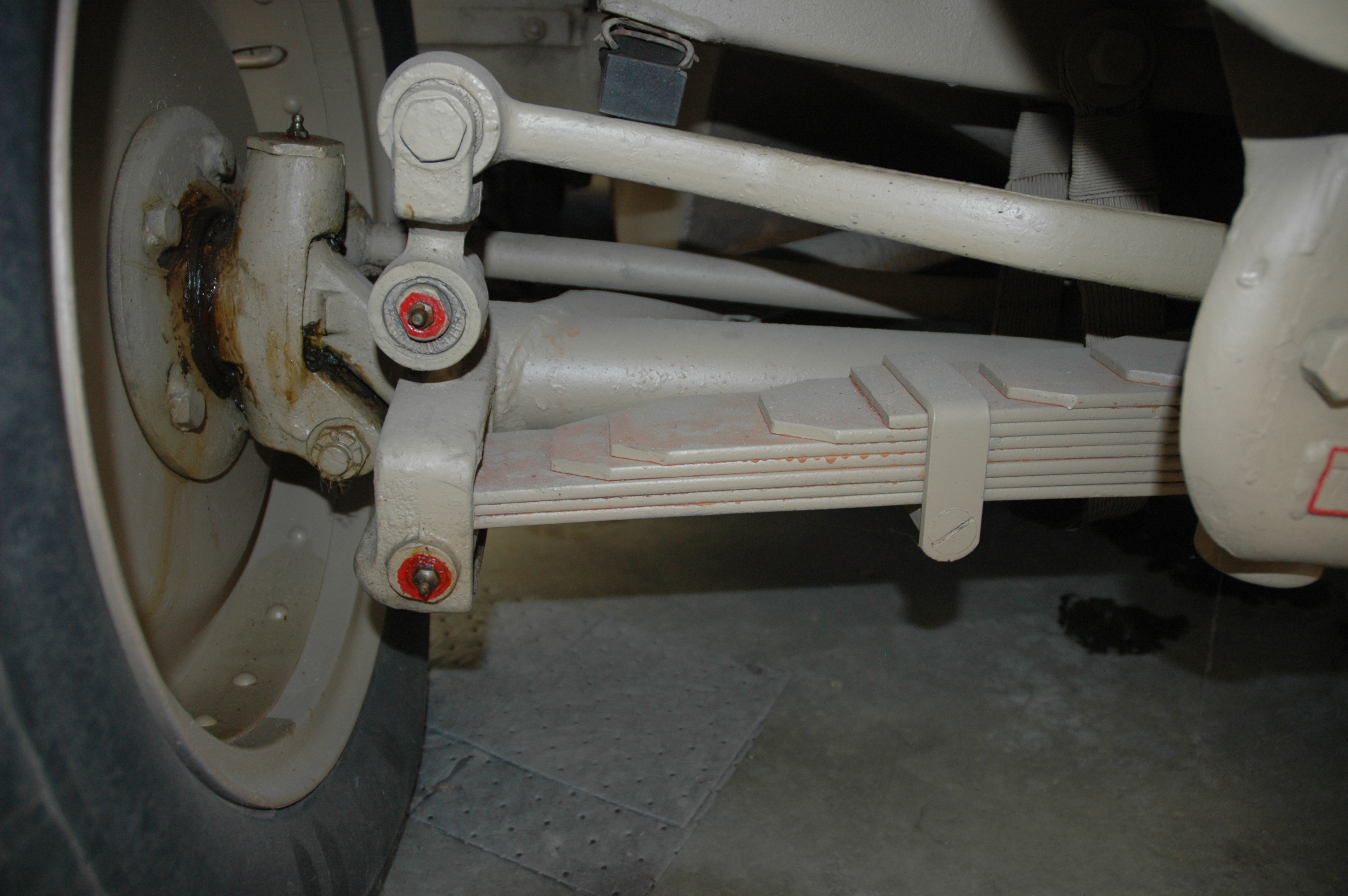

The front wheels of the Sd.Kfz.10 are unpowered. The front axle is attached to a leaf spring assembly that acts as a shock absorber for the front wheels. Lubrication fittings are high-lighted in red.
